A makeshift apparatus has been designed composed of a sealed, hydrophobic 2-propanol/SiO2 aerogel component to filter outside air particles. Following verification and assessment, the apparatus was crafted with a Buchner funnel. Aerogel matrices were tightly fitted into filter housings and secured in side-arm flasks, which were then equipped to a vacuum pump to pull air through the aerogel matrices. Aerogels, both with and without fiberglass reinforcement, were used to collect airborne particulates for one- and three-hour increments. An untreated negative control aerogel, employing air collection from a laminar hood, and a positive aerogel matrix were seeded with endospores that verified the extraction from the matrices.
The aerogel matrices were then cryogenically milled at liquid nitrogen temperatures in a SPEX SamplePrep 6870 solenoid powered cryogenic grinder. After cryo-grinding, the material was transferred to an automated DNA extraction cartridge where the DNA was purified. After extraction, downstream DNA-dependent qPCR (quantitative polymerase chain reaction) analyses indicated that the one-hour and three-hour sampling events yielded ≈1 × 104 and ≈1 × 108 16S rRNA gene copies per aerogel, respectively. When a positive control was seeded with ≈1 × 108 bacterial endospores and subsequently processed and analyzed, it gave rise to a recovery rate of ≈1.6%. Notably, the negative control that was processed in an ISO-5 laminar hood yielded undetectable results.
These findings support the notion that aerogel degradation via cryogenic grinding is feasible with downstream nucleic-acid-based molecular modes of analysis. This key finding demonstrates an effective end-to-end process flow for determining the source-specific density of encapsulated microorganisms in a nonmetallic matrix. This approach, and future iterations thereof, can be tailored to assess embedded bioburden for future mission sets, where comprehensive assessments will certainly be requisite, by simply using aerogel matrices as surrogates to render actual specification values for a reduction in endospores burden. Furthermore, such an aerogelbased system could be engineered to the exterior of an aircraft to collect particulates at varying time points and altitudes over the course of a flight. These successful outdoor airborne particulate sampling events confirm the expected increase in biological particles over the course of a one- to three-hour sampling event.
This work was done by Myron T. La Duc, Kasthuri J. Venkateswaran, Wayne W. Schubert, Steven M. Jones, and James N. Benardini of Caltech for NASA’s Jet Propulsion Laboratory. NPO-48880

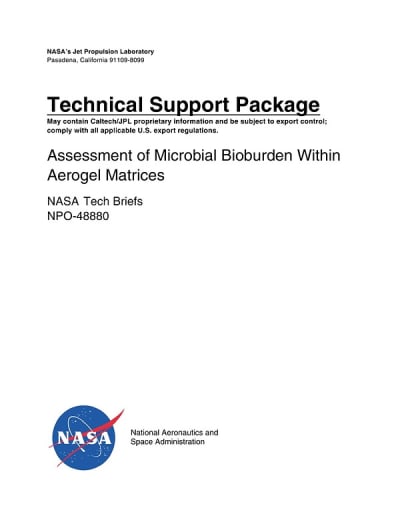

This Brief includes a Technical Support Package (TSP).
Assessment of Microbial Bioburden Within Aerogel Matrices
(reference NPO48880) is currently available for download from the TSP library.
Don't have an account?
Overview
The document discusses a research and development effort focused on an innovative aerogel-based sample collection strategy designed to capture airborne microorganisms and biotic particles. Conducted by a team from the Jet Propulsion Laboratory, the primary objective was to validate the feasibility of using silica aerogel matrices for collecting biological airborne particulates without the need for refrigeration, making it suitable for various applications, including those in enclosed human habitation systems like the International Space Station (ISS).
The research aimed to demonstrate that aerogel matrices could effectively capture both free and particle-associated microorganisms while maintaining their integrity throughout the collection process. Key considerations included ensuring that the captured microbes remained entrained in the aerogel until laboratory processing, which involved cryogenic grinding and quantitative-polymerase chain reaction (qPCR) analysis. The study emphasized the importance of effectively releasing the collected samples from the aerogel without compromising their biosignature integrity.
Results from the investigation were promising. The aerogel matrices, particularly those reinforced with fiberglass, significantly outperformed non-reinforced counterparts in capturing airborne particulates. During one- and three-hour sampling events, the reinforced aerogel yielded approximately 10,000 and 100 million 16S rRNA gene copies per aerogel, respectively, while control samples showed undetectable results. These findings confirmed the expected increase in biological particles over the sampling duration and supported the potential for engineering such systems to the exterior of aircraft for real-time collection during flights.
The research advanced the technology readiness level (TRL) of the nucleic-acid-based capture and analysis portion from TRL-1 (concept stage) to TRL-3 (analytical and experimental proof-of-concept). This advancement indicates significant progress toward practical applications of the aerogel-based capture system, which could be integrated into various platforms, including drones and cleanroom monitoring devices.
Overall, the document highlights the successful validation of an aerogel-based strategy for airborne microbial collection, showcasing its potential for future applications in space exploration and environmental monitoring. The findings contribute to the understanding of microbial transport and its implications for health, particularly in sensitive ecosystems like coral reefs affected by transatlantic winds.
