Wireless Damage Location Sensing System

Langley Research Center, Hampton, Virginia

NASA Langley Research Center researchers have developed a wireless, open-circuit SansEC (Sans Electrical Connections) sensor that can be used for pharmaceutical applications without the need for physical contact. Many attributes of a container can be monitored, such as liquid or powder levels, temperature of contents, and changes caused by spoilage. Tampering can also be detected. The unique design of this thin-film sensor allows many of these properties to be measured with the sensor external to the container/package. Fill levels can be measured without the need to open the container. At the core of the technology is the NASA award-winning SansEC sensor, which is damage-resilient and environmentally friendly to manufacture and use. The sensors use a magnetic field response measurement acquisition device to provide power to the sensors and to acquire physical property measurements from them.

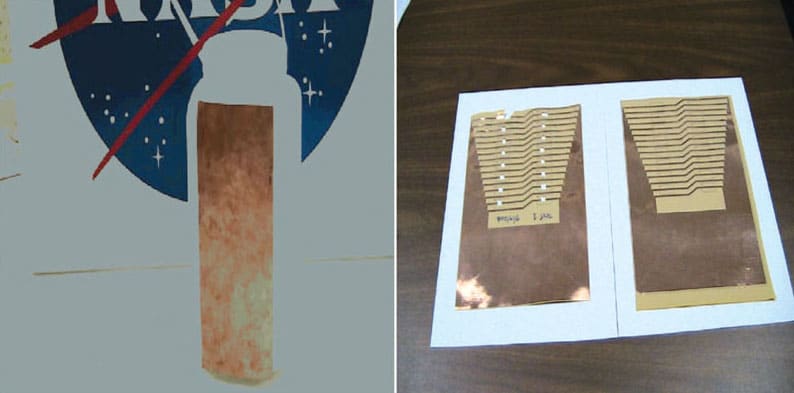

The sensor used for measuring container liquid or powder level without the need to open the container (left), and the sensor used for monitoring dosage taken from a blister pack (right).

The SansEC sensor is an electrically open circuit without electrical connections. Having a device without circuits eliminates a common failure source of electrical systems. It consists of a uniquely designed thin-film electrically conductive geometric pattern that stores energy in both electric and magnetic fields. When wirelessly interrogated from the portable data acquisition system, the sensor becomes electrically active and emits a wireless response. The magnetic field response attributes of frequency, amplitude, and bandwidth of the inductor correspond to the physical property states measured by the sensor. Container damage, temperature, spoilage, or substance level is detected by changes in resonant frequency read by the accompanying magnetic field data acquisition system. A unique feature of the sensor is its ability to measure more than one physical attribute at the same time. In addition, by eliminating electrical connections, damage to any area of the sensor will not prevent it from being powered or interrogated.
