In today’s digital age, the use of “Internet-of-Things” devices (embedded with software and sensors) has become widespread. These devices include wireless equipment, autonomous machinery, wearable sensors, and security systems. Because of their intricate structures and properties there is a need to scrutinize them closely to assess their safety and utility and rule out any potential defects. But, at the same time, damage to the device during inspection must be avoided.
Terahertz (THz) imaging, based on radiation with frequencies between 0.1 and 10 THz, is one such non-destructive method that is rapidly gaining popularity owing to its high penetration, resolution, and sensitivity. Conventional THz cameras, however, are bulky and rigid, thereby limiting their potential in imaging uneven surfaces. Moreover, their high cost and lack of versatility in sensor configurations make them a rather impractical alternative, calling for more adaptable sensors.

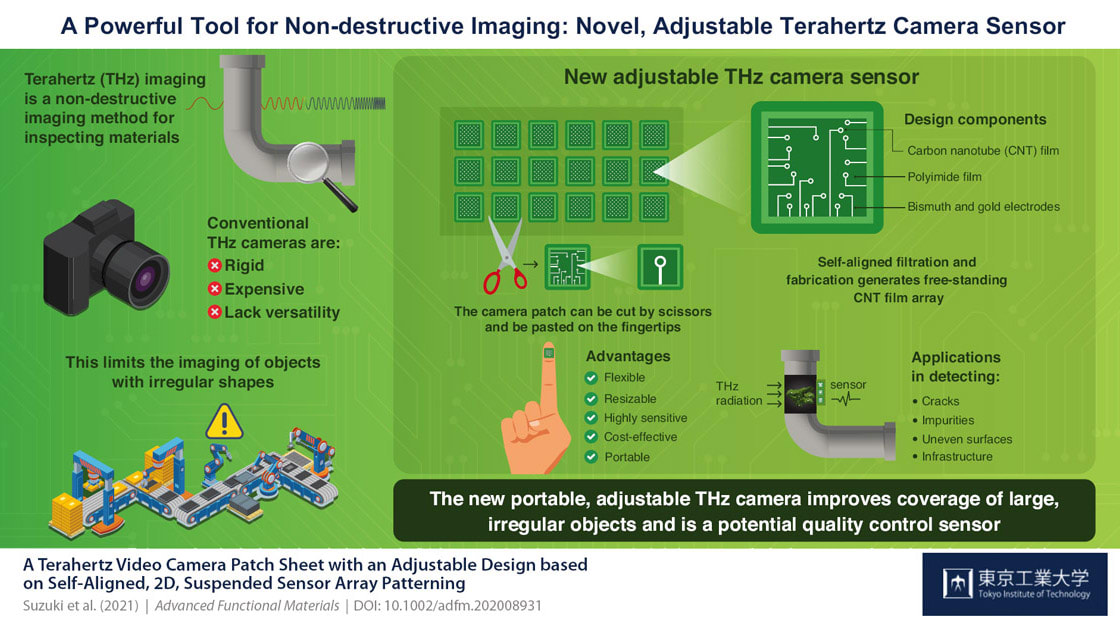

To this end, a team of researchers from Tokyo Tech, led by Associate Professor Yukio Kawano, have addressed this gap by designing a flexible and free-standing THz sensor array that can be used to image blind ends of irregularly shaped objects.
“Given the diversity in shapes, structures, and sizes of test objects, the camera design and sensor must be adapted to conform to different configurations. In our study, we have developed a simple and cost-effective fabrication method for generating THz cameras with adaptable shapes,” said Dr. Kawano.
The scientists knew that the material used in such sensors must have good absorption in the THz spectrum along with a high efficiency of converting emissions into detectable electric signals. For this reason, they selected carbon nanotube (CNT) films, which also possess good mechanical strength and flexibility. They passed the CNT solution through a polyimide film with laser-induced slits and a membrane filter using a vacuum. Upon drying, the CNT solution remained as a free-standing suspended structure between the layers of the patterned polyimide film. Further, they developed a simple fabrication process based on the self-assembly of CNT film array and its ability to form electrodes at both ends.
For this, they evaporated metal electrodes over the patterned polyimide film. Together, these processes generated a THz camera patch sheet with multiple cameras. Interestingly, the structure of the suspended CNT film could be modified by altering the filtering conditions and thus the frictional force, making the process customizable.
Moreover, the patch sheet could be cut with scissors into smaller portable and wearable sensors that can be attached to the surface of the test object for better coverage. The researchers were able to demonstrate its industrial applications by detecting and visualizing cracks, impurities and uneven coating of polymers in a resin and by detecting sludge within a bent pipe, thus underscoring the potential of the camera for quality control operations.
