Wearable Device Makes Memories and Powers Up with The Flex of a Finger

Power Electronics INSIDER

Researchers have invented an experimental wearable device that generates power from a user’s bending finger and can create and store memories, in a promising step towards health monitoring and other technologies.

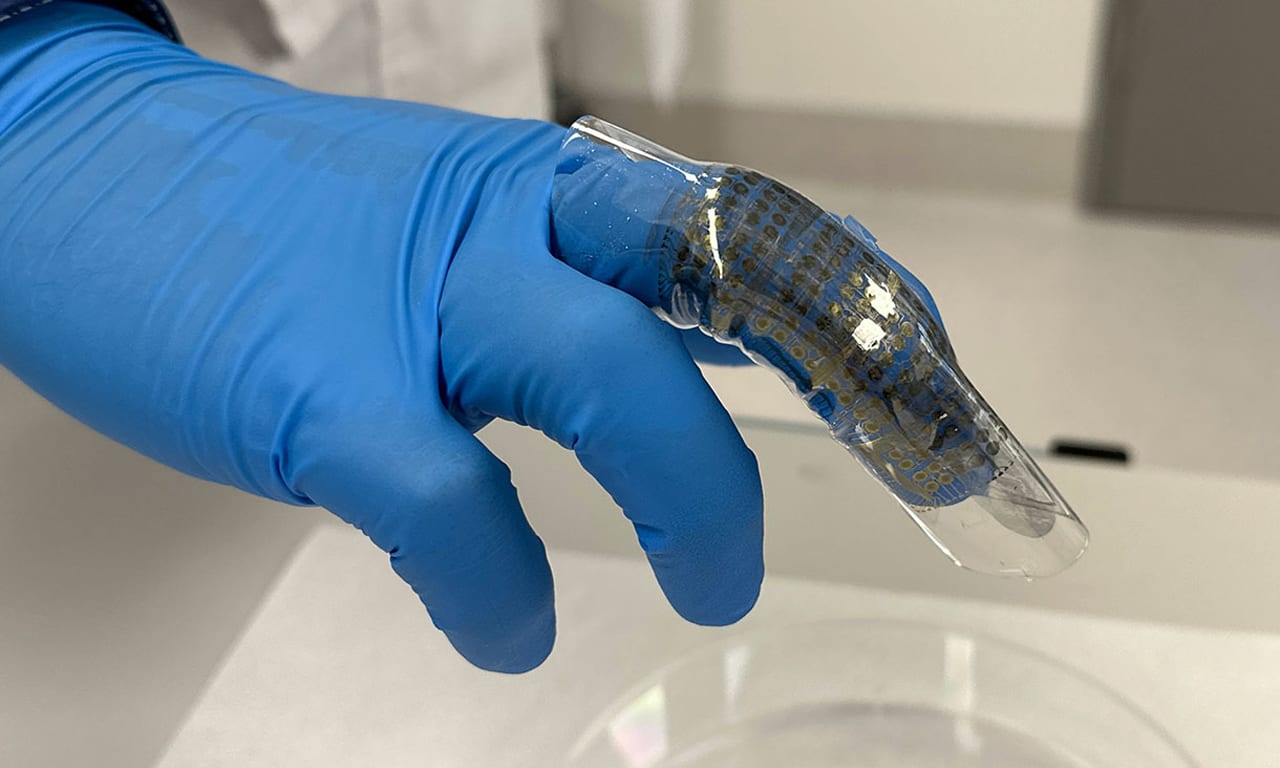

The innovation features a single nanomaterial incorporated into a stretchable casing fitted to a person’s finger. The nanomaterial enables the device to generate power with the user bending their finger. The super-thin material also allows the device to perform memory tasks.

Multifunctional devices normally require several materials in layers, which involves the time-consuming challenge of stacking nanomaterials with high precision.

The team, led by RMIT University and the University of Melbourne in collaboration with other Australian and international institutions, made the proof-of-concept device with the oxide of the low-temperature liquid metal, bismuth, which is safe and well suited for wearable applications.

Senior researcher Dr Ali Zavabeti said the invention could be developed to create medical wearables that monitor vital signs — incorporating the researchers’ recent work with a similar material that enabled gas sensing — and memorize personalized data.

“The innovation was used in our experiments to write, erase and rewrite images in nanoscale, so it could feasibly be developed to one day encode bank notes, original art, or authentication services,” said Zavabeti, an engineer from RMIT and the University of Melbourne.

The team says the study revealed that their invention exhibits “exceptional responsiveness to movements associated with human activities, such as stretching, making it a promising candidate for wearable technologies.”

“We tested natural motion behavior with the device attached to a finger joint, with an average output peak of about one volt,” Zavabeti said.

The device was able to perform the memory functions of “read”, “write”, and “erase”, which included using the RMIT logo and a square-shaped insignia as demonstrations of these capabilities. The device, which was not worn by a user during these memory experiments, wrote and stored the logo and symbol in a space that could fit 20 times within the width of a human hair.

Lead author and PhD student Xiangyang Guo from RMIT, said the team can print layers of bismuth oxide in just a few seconds.

“We fundamentally investigated this instant-printing technique for the first time using low-melting point liquid metals,” said Guo, who works under the supervision of Dr. Zavabeti and Professor Yongxiang Li.

The team demonstrated that engineering materials at the nanoscale can present enormous opportunities in a range of functions, from sensing and energy harvesting to memory applications, he said.

“Bismuth oxide can be engineered to provide memory functionality, which is critical for many applications,” Guo said. “The material can act as a semiconductor, meaning it can be used for computation.”

“It is a nanogenerator, meaning it is energy efficient, with a green energy supply from environmental vibrations and mechanical movements.”

Guo said bismuth oxide was likely to cause less irritation to skin, compared with silicon, and it is durable, and stretchable and can be integrated into wearable technologies.

The researchers plan to adapt their approach for other low-temperature liquid and solid metals and alloys that could be developed for personalized wearables and are keen to collaborate with industry partners to further develop and prototype this invention.

The researchers’ peer-reviewed article, “Multi-Functional Atomically Thin Oxides from Bismuth Liquid Metal,” is published in Advanced Functional Materials (DOI: 10.1002/adfm.202307348).
