Researchers Develop Smallest Free-Floating Bubbles for Medical Imaging

Zongru Li (left) and George Lu (Image: Anna Stafford/Rice University)

Ultrasound imaging and ultrasound-mediated gene and drug delivery are rapidly advancing diagnostic and therapeutic methods; however, their use is often limited by the need for microbubbles, which cannot transverse many biological barriers due to their large size. A team of researchers from Rice University have introduced 50-nm gas-filled protein nanostructures derived from genetically engineered gas vesicles(GVs) that are referred to as 50 nmGVs.

Figure 1. Purification and additional characterization of 50nmGVs. a) Representative phase contrast images of 50nmGV-expressing E.coli. E.coli cells with strong GV expression have visible reflecting dots in the phase contrast imaging (Farhadi et al., 2020) as indicated by the red arrows. Scale bars = 5 μm. b) A transmission electron microscopy (TEM) image of 50nmGVs mixed with commercial 50-nm gold nanoparticles (50AuNPs) for the comparison of their structural properties. 50AuNPs appear as darker contrast and GVs appear as lighter contrast on TEM images. Scale bar = 200nm. (c) A representative camera image of a 1.5 mL tube containing floating 50nmGVs and a TEM image of clustered 50nmGVs. Right after cell lysis, the clustered 50nmGVs are visually discernible as a floating white layer. d) A representative camera image and TEM image of 50nmGVs unclustered by 6 M urea treatment as described in previous protocols (Lakshmanan et al., 2017).

These diamond-shaped nanostructures have hydrodynamic diameters smaller than commercially available 50-nm gold nanoparticles and are, to the authors’ knowledge, the smallest stable, free-floating bubbles made to date. 50 nmGVs can be produced in bacteria, purified through centrifugation, and remain stable for months. Interstitially injected 50 nmGVs can extravasate into lymphatic tissues and gain access to critical immune cell populations, and electron microscopy images of lymph node tissues reveal their subcellular location in antigenpresenting cells adjacent to lymphocytes. The authors anticipate that 50 nmGVs can substantially broaden the range of cells accessible to current ultrasound technologies and may generate applications beyond biomedicine as ultrasmall stable gas-filled nanomaterials.

Bioengineering researchers at Rice University have developed ultrasmall, stable, gas-filled protein nanostructures that could revolutionize ultrasound imaging and drug delivery. Unlike current microbubbles or nanobubbles that are too large to cross biological barriers effectively, the novel diamond-shaped 50-nanometer gas vesicles — approximately the size of viruses — are believed to be the smallest stable, free-floating structures for medical imaging ever created.

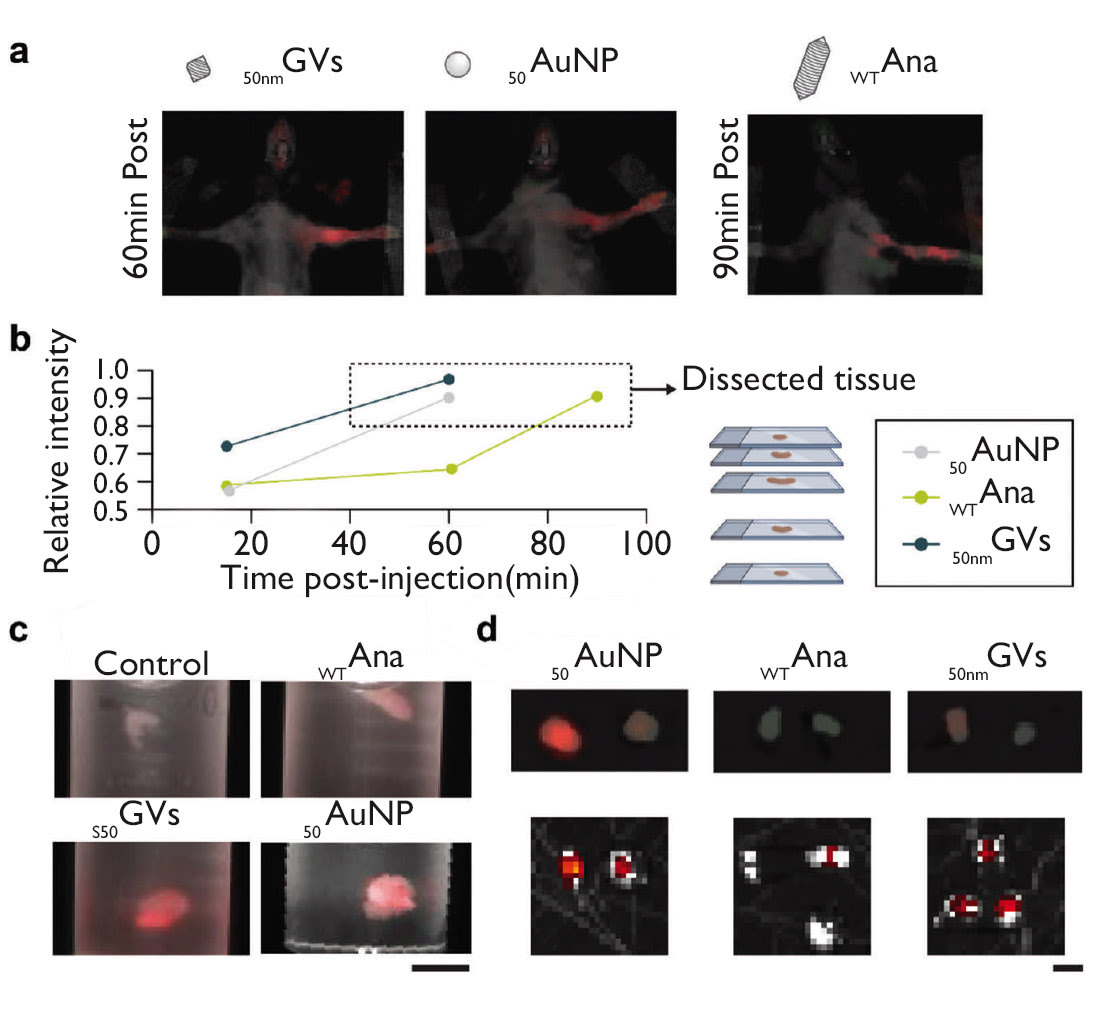

Figure 2. Supplementary datasets illustrating the biodistribution of nanoparticles in lymph nodes. a) A series of IVIS images showing the transportation kinetics of injected particles. Nanoparticles were indicated by a red channel. b) Relative fluorescent intensity changes within the targeted lymph nodes area at different time points. Lymph tissues were dissected when the intensity within the lymph node area reached a similar level as the injected sites. c) Overlay of epi-white light and fluorescence images of dissected mouse lymph nodes in PBS solution. The presence of fluorescently labeled nanoparticles is shown by the red color. Scale bar = 1mm. d) Additional IVIS images of dissected lymph nodes. Scale bar = 1mm.

Microbubbles have enabled promising recent advances in ultrasound imaging and ultrasound-mediated gene and drug delivery. Used as contrast agents, they can deliver molecular-level information on targeted biomarkers or cell types. However, due to their large size (1-10 micrometers in diameter), they can rarely leave the bloodstream, restricting their effectiveness to well-vascularized tissues.

In contrast, the new 50-NM GVs can penetrate tissue with the research showing they were able to reach important immune cell populations in lymph nodes. This opens up new possibilities for imaging and delivering therapies to previously inaccessible cells.

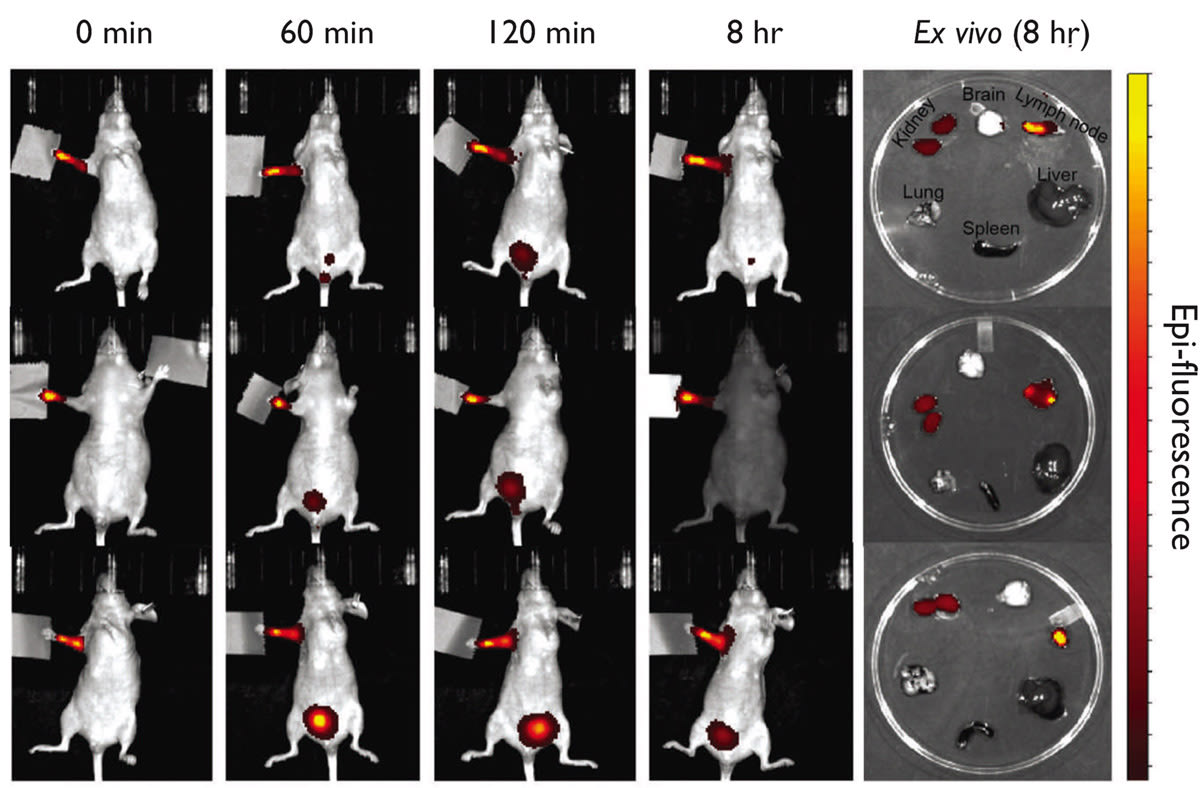

Figure 3. Biodistribution of 50nmGVs. Whole-body imaging of nude mice (N = 3) with interstitially injected Alexa Fluor 750 dye labelled 50nmGVs were performed at 1 hr, 2 hrs, and 8 hrs post-injection. Mice were euthanized at 8 hrs post-injection, and major organs were collected. Ex vivo fluorescence imaging of these organs was immediately performed on the IVIS Lumina II. The name of the organs are labeled in the top ex vivo fluorescence image, and the color scheme for the ex vivo fluorescence images is labeled on the right side of the image.

Electron microscopy images of lymphatic tissue reveal that large cohorts of the nanostructures cluster inside cells that serve a critical role in the activation of the innate immune response, suggesting their potential use in immunotherapies, cancer prophylaxis and early diagnosis and infectious disease treatment. The work is detailed in the journal Advanced Materials.

“This breakthrough opens new avenues for ultrasound-mediated disease treatment, impacting future medical practices and patient outcomes. The research has notable implications for treating cancers and infectious diseases, as lymph-node-resident cells are critical targets for immunotherapies,” said study author George Lu, Assistant Professor of Bioengineering and a Cancer Prevention and Research Institute of Texas Scholar.

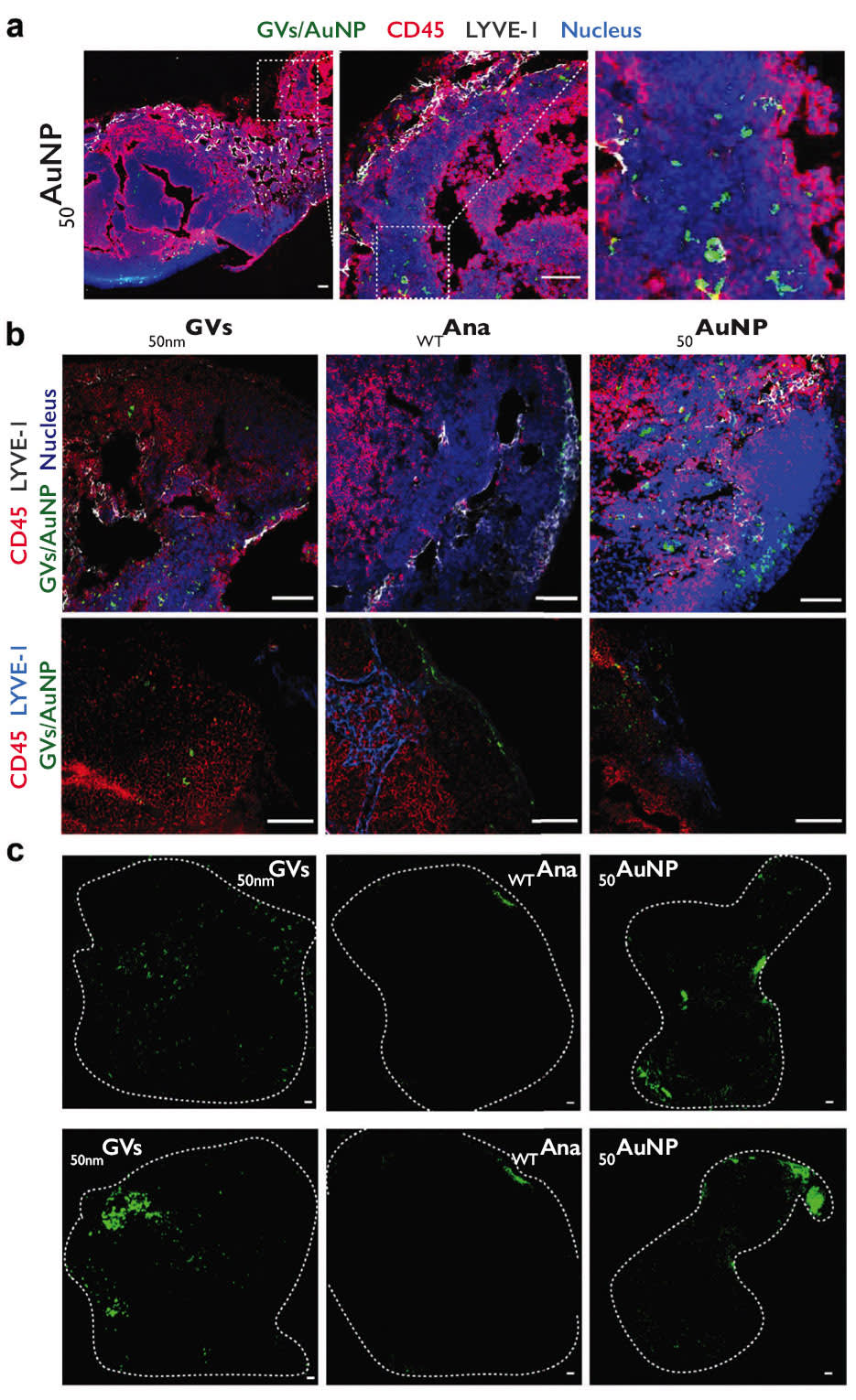

Figure 4. Supplementary datasets illustrating the biodistribution of nanoparticles in lymph nodes. a) Confocal fluorescence images of immunohistochemistry to depict the distribution of 50-nm gold nanoparticles (50AuNP) within the lymph node tissue. The white dashed boxes in the left images outline the location of the areas zoomed in for the right images. Scale bar = 50 μm. b) Additional fluorescence images of immunohistochemistry were captured to depict the distribution of WTAna, 50nmGVs, and 50AuNP within the lymph node tissues. Each image is an overlay of multiple ones acquired in different fluorescent channels. The labeling on the left indicates the specific fluorescent channels used. Scale bars = 50 μm. c) Representative images demonstrating the distribution of nanoparticles inside the lymph node. The green fluorescence channel indicated the nanoparticles. The white dashed lines outline the periphery of lymph nodes on the slides. Scale bars = 50 μm.

Research methods included genetic engineering, nanoparticle characterization techniques, electron microscopy and ultrasound imaging to analyze the distribution and acoustic response of these structures.

“The rationale was to harness their small size and acoustic properties for biomedical applications,” Lu said. “This work represents a pioneering design of functional gas-filled protein nanostructures small enough to cross into the lymphatic system.”

The study outlines several directions for future research, including assessing the nanobubbles’ biosafety and immunogenicity, determining the optimal ultrasound parameters for in vivo applications and more.

“More broadly, this represents a significant advancement in material design, potentially leading to innovative applications across various scientific fields,” Lu said. “Because these nanostructures are composed entirely of proteins and are produced within living bacteria, they exemplify how biogenic materials can surpass the performance of synthetic materials.”

Rice postdoctoral researcher Qionghua Shen and graduate student Zongru Li are lead authors on the paper. Other Rice authors include Yixian Wang, Matthew Meyer, Marc De Guzman, Janie Lim and Han Xiao. Richard Bouchard from the University of Texas MD Anderson Cancer Center is also an author.

This work was supported by CPRIT (RR190081, RR170014 and RP190131), National Institutes of Health (R00EB0 24600, R21EB033607, R01CA277838, R35GM133706, R01EB028762 and P30CA016672), the Robert A. Welch Foundation, the G. Harold and Leila Y. Mathers Foundation, the Hearing Health Foundation and the John S. Dunn Foundation.
