Two reports propose the development of non-ablative aeroshells for braking of spacecraft entering the atmospheres of Earth, Mars, and other planets. The primary advantages of non-ablative aeroshells, relative to ablative aeroshells, results from reduced mass and increased aerodynamic stability of the aeroshell occasioned by elimination of the reactive ablative layer. A typical non-ablative aeroshell would comprise the following layers (in sequence from front to back): (1) a carbon-carbon face sheet coated with silicon carbide, (2) a hollow carbon-carbon structure like that of partitions in an egg crate, (3) a metal-coated carbon-carbon radiation plate, (4) a thermally insulating layer made of carbon aerogel, and (5) a carbon-carbon back plate.

This work was done by Gregory Hickey and Shyh-Shiuh Lih of Caltech for NASA's Jet Propulsion Laboratory.

NPO-20955

Topics:
Aerodynamics Anatomy Body regions Coatings, colorants and finishes Coatings, colorants, and finishes Entry, descent and landing Entry, descent, and landing Hazardous materials Hazards and emergency operations Head Insulation Medical, health and wellness Medical, health, and wellness Motion Control Radiation Spacecraft Vehicles
This Brief includes a Technical Support Package (TSP).

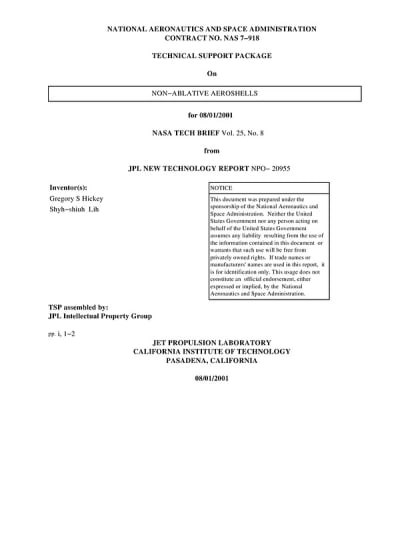

Document cover
