Interactive, Automated Management of Icing Data

John H. Glenn Research Center

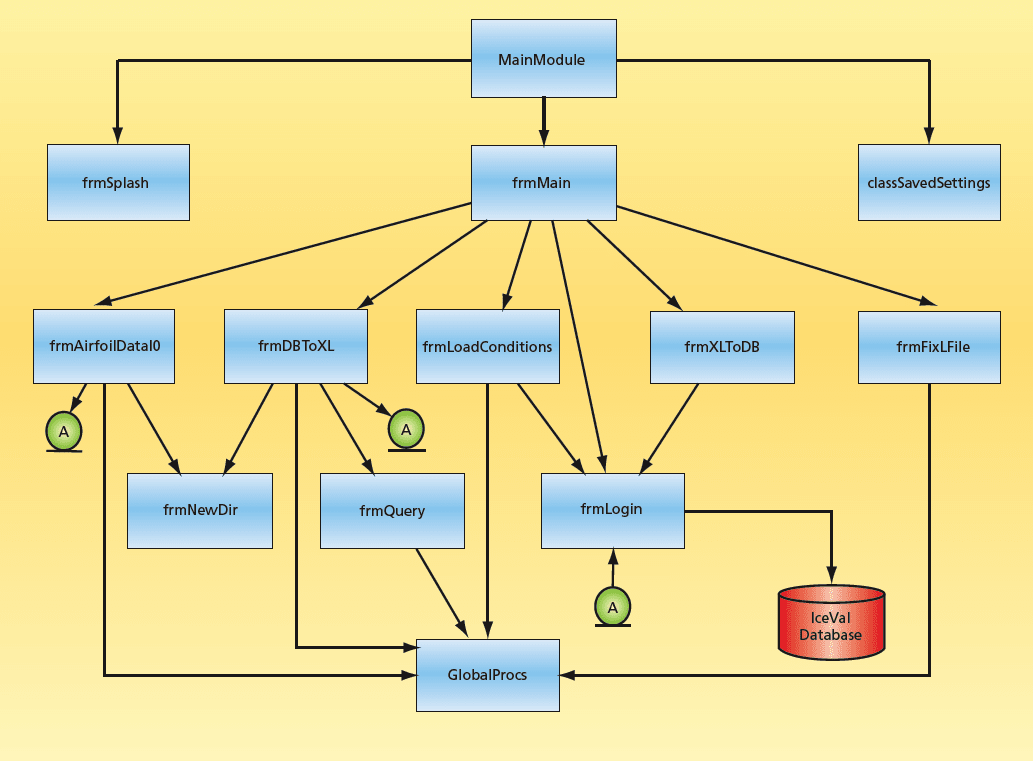

IceVal DatAssistant is software (see figure) that provides an automated, interactive solution for the management of data from research on aircraft icing. This software consists primarily of (1) a relational database component used to store ice shape and airfoil coordinates and associated data on operational and environmental test conditions and (2) a graphically oriented database access utility, used to upload, download, process, and/or display data selected by the user.

The relational database component consists of a Microsoft Access 2003 database file with nine tables containing data of different types. Included in the database are the data for all publicly releasable ice tracings with complete and verifiable test conditions from experiments conducted to date in the Glenn Research Center Icing Research Tunnel. Ice shapes from computational simulations with the correspond - ing conditions performed utilizing the latest version of the LEWICE ice shape prediction code are likewise included, and are linked to the equivalent experimental runs.

The database access component includes ten Microsoft Visual Basic 6.0 (VB) form modules and three VB support modules. Together, these modules enable uploading, downloading, processing, and display of all data contained in the database. This component also affords the capability to perform various database maintenance functions — for example, compacting the database or creating a new, fully initialized but empty database file.

This program was written by Laurie H. Levinson of Glenn Research Center.

Inquiries concerning rights for the commercial use of this invention should be addressed to NASA Glenn Research Center, Innovative Partnerships Office, Attn: Steve Fedor, Mail Stop 4–8, 21000 Brookpark Road, Cleveland, Ohio 44135. Refer to LEW-18343-1.

---

---
