Imaging spectrometers yield rich and informative data products, but interpreting them demands time and expertise. There is a continual need for new algorithms and methods for rapid firstdraft analyses to assist analysts during instrument operations. Intelligent data analyses can summarize scenes to draft geologic maps, searching images to direct operator attention to key features. This validates data quality while facilitating rapid tactical decision-making to select follow-up targets. Ideally, these algorithms would operate in seconds, never grow bored, and be free from observation bias about the kinds of mineralogy that will be found.
A method was developed for operatordirected search within imaging spectrometer data. Analysts can use a pure Web interface to build a library using spectra from libraries or previous images, and then search for similar spectra within catalog images. The service is analogous to a search engine capable of finding a match to a user query. The results appear in the form of a map identifying spectral signature matches to the target. Searching within a single image reveals areas of similar reflectance to assist understanding of scene composition. Searching across images can help discover mineral anomalies as well as understand trends in composition on planetary scales.
Just as Web search involves more than matching phrases, spectral search is more challenging than simply matching the shape of the spectrum. The background substrate and illumination changes can cause the same signature to appear very different across scenes. Here, the search service uses an adaptive matched-filter approach that compensates for the context and background characteristics of each scene. It searches millions of candidate pixels in seconds or less. An additional benefit is that the inverse covariance matrix (a natural byproduct of the signature matching) can be used for anomaly detection with the classic Reed-Xiaoli (RX) algorithm. The covariance is inverted using dominant mode rejection and diagonal loading as in previous work.
The target detection is not particularly novel, but it is used in a new application. At the time of this reporting, this is believed to be the first instance of a distributed Web-based system for userdefined spectral library searches in hyperspectral images. Currently, the full images are transferred manually by disk or network transfer for manipulation by specialized software that resides on the user’s computer.
The Web interface is a convenient method for exploring and browsing these data without the license requirements of full commercial hyperspectral analysis software or the challenge of distributing many Gigabyte-scale data cubes to multiple members of a distributed instrument team. It could be useful for real-time operations of imaging spectrometers during rover traverses and deep space exploration. Terrestrial crossover applications are also likely since this provides an easy way to distribute imaging spectrometer data to clients. Airborne and future spaceborne instruments will generate extremely large data catalogues, and cursory analyses will require remote, distributed tools for manipulating them.
This work was done by David R. Thompson, Alexander Smith, and Rebecca Castano of Caltech for NASA’s Jet Propulsion Laboratory.
This software is available for commercial licensing. Please contact Dan Broderick at

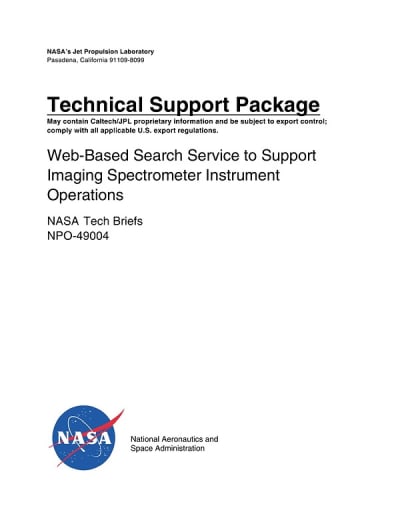

This Brief includes a Technical Support Package (TSP).
Web-Based Search Service to Support Imaging Spectrometer Instrument Operations
(reference NPO49004) is currently available for download from the TSP library.
Don't have an account?
Overview
The document presents a Technical Support Package detailing a Web-Based Search Service aimed at enhancing Imaging Spectrometer Instrument Operations, developed by researchers at NASA's Jet Propulsion Laboratory (JPL). The initiative is supported by the NASA Multi-Mission Ground Support Services through a technology development grant from the Advanced Multi-Mission Operations System (AMMOS).
The primary focus of the document is to address the challenges faced in tactical operations of imaging spectrometers, which are crucial for analyzing planetary surfaces and atmospheres. Key challenges include the difficulty in visualizing full image cubes, the presence of noise in planetary spectral data, subtle signal interpretation, and the unpredictability of atmospheric conditions. These factors complicate the identification of mineralogical features and the extraction of useful data from the images captured by these instruments.
To overcome these challenges, the document outlines essential capabilities for effective tactical instrument operations. These include the ability to select and view spectra, build a spectral library, determine key constituents in new images, and identify subtle signatures of minerals of interest. The development of a web-based search service is intended to streamline these processes, making it easier for operators to analyze and interpret spectral data.
The document also emphasizes the importance of collaboration and support from various institutions, including the California Institute of Technology and Brown University, in the development of this technology. It highlights the potential for broader technological, scientific, and commercial applications stemming from the advancements made in imaging spectrometry.
In summary, this Technical Support Package serves as a comprehensive overview of the efforts to improve imaging spectrometer operations through a web-based search service. It addresses the inherent challenges in the field and outlines the necessary capabilities to enhance data analysis and interpretation, ultimately contributing to more effective planetary exploration and research. The document is a testament to NASA's commitment to advancing aerospace technology and its applications beyond space exploration.
