A laboratory method has been conceived to enable the enumeration of:
- Cultivable bacteria and bacterial spores that are, variously, airborne by themselves or carried by, parts of, or otherwise associated with, other airborne particles; and
- Spore-forming bacteria among all of the aforementioned cultivable microbes.
The method was originally intended to be used along with other methods as means of quantitative assessment of the potential for contamination of remote planets by bacterial spores carried aboard spacecraft from Earth. There may also be potential terrestrial applications in assessing actual or potential airborne biological contamination on Earth. Of particular interest, for a given sample, the method provides information on the average number of spores per particle as a function of particle size. This information is important for studies of airborne biological contamination because (1) spores are particles and are believed to be associated with other particles and (2) entrainment and transport of particles in air are strongly affected by particle size.
The method involves the use of two commercially available instruments:
- One instrument is a quartz-crystal-microbalance (QCM) ten-stage cascade impactor, which can quantify airborne particles of different sizes but cannot measure bacterial content.
- The other instrument is a particle counter that includes six stages, in which are placed tryptic soy agar (TSA) plates to collect particles in six different size ranges. TSA is a basic medium used for culturing many kinds of microorganisms. This instrument indicates the numbers of microbial colonies that grow on the plates after incubation, which numbers correlate with the numbers of the cultivable total microbes collected in air. However, this instrument does not count all of the particles (including particles other than bacteria and spores) collected on each agar plate.
The method prescribes two tasks, the first being to determine the total distribution of cultivable microbes (both spore-forming and non-spore-forming) on airborne particles of different sizes. In this first task, the two instruments are positioned side by side and run simultaneously. The six-stage counter gives the total number of cultivable microbes per unit area for each particle size range. The QCM ten-stage cascade impactor gives the total numbers of particles (including particles other than cultivable microbes) per unit area per size range. The size ranges of the two instruments are different. The data acquired by the two instruments are consolidated in a procedure that includes taking account of the differences between the size ranges. This procedure yields information on the average number of cultivable microbes per particle as a function of particle size.
The second task is to determine the distribution of spore-forming bacteria (and not of non-spore-forming bacteria) on airborne particles of various sizes. This task incorporates the procedures of the first task and includes additional procedures. Because the colonies collected by the six-stage particle counter contain non-spore-forming as well as spore-forming bacteria, this task includes a procedure for differentiating between the spore-forming and non-spore-forming colonies.
To start the differentiation procedure, a sample is taken from every colony on the agar plates and incubated in a nutrient sporulation medium (NSM) for seven days. An NSM is a low-nutrient medium, and only spore-forming species (which are hardier than non-spore-forming species) are capable of forming spores that can survive the week-long low-nutrient condition. Next, the NSM-incubated samples are subjected to a heat shock consisting of a temperature of 80 °C for 15 minutes. Spores can survive the heat shock, but non-spore-forming bacteria and spore-forming bacteria that are not in spore form cannot survive. Therefore, any colonies that resume growth after the incubation in the NSM and the heat shock are deemed to be colonies of spore-forming bacteria. The resulting knowledge of which of the colonies on the agar plates consist of spore-forming bacteria is used to form the counts in the six size ranges, then the data from the two instruments are consolidated, in the same manner as in the first task, to obtain the average number of spore-forming bacteria per particle of each size range.
This work was done by Ying Lin and Jack Barengoltz of Caltech for NASA’s Jet Propulsion Laboratory.
NPO-41546

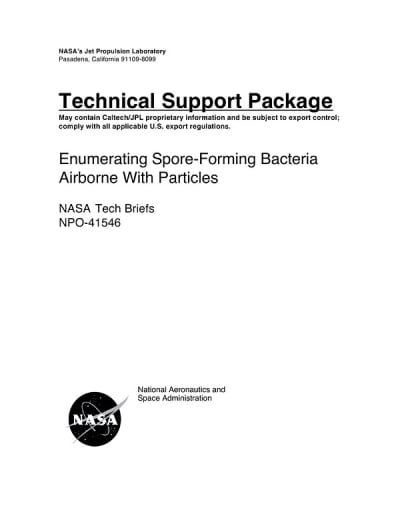

This Brief includes a Technical Support Package (TSP).
Enumerating Spore-Forming Bacteria Airborne With Particles
(reference NPO-41546) is currently available for download from the TSP library.
Don't have an account?
Overview
The document is a Technical Support Package from NASA's Jet Propulsion Laboratory, specifically focusing on a new method for enumerating airborne spore-forming bacteria associated with particles, identified by NTR Number: 41546. This innovation is part of NASA Tech Briefs, which disseminates results from aerospace-related developments that have broader technological, scientific, or commercial applications.
The primary aim of this research is to improve the understanding and quantification of spore-forming bacteria that can be found in the air, particularly those that are attached to particulate matter. This is significant for various fields, including environmental monitoring, public health, and aerospace applications, where the presence of such bacteria can have implications for both human health and the integrity of equipment and systems.
The document emphasizes the importance of accurately enumerating these bacteria, as they can be indicators of environmental conditions and can also pose risks in certain contexts, such as contamination in clean environments or the spread of pathogens. The method developed is expected to enhance the ability to detect and quantify these microorganisms effectively, which is crucial for both research and practical applications.
Additionally, the Technical Support Package provides information on how to access further assistance and resources related to this technology through NASA's Innovative Partnerships Program and the NASA Scientific and Technical Information (STI) Program Office. It includes contact details for the STI Help Desk, offering support for those interested in exploring the research and technology in this area further.
The document also includes a notice regarding the proprietary nature of the information and the need to comply with U.S. export regulations, highlighting the importance of responsible dissemination and use of the technology developed.
In summary, this Technical Support Package outlines a significant advancement in the enumeration of airborne spore-forming bacteria, providing a foundation for further research and application in various fields, while also ensuring that users are aware of the necessary compliance and support resources available through NASA.
