A robotic apparatus equipped with ultrasonic probes and other instrumentation has been proposed to reduce the danger and cost and increase the speed of searching for land mines. The apparatus would implement modified versions of the proven techniques used by human searchers (delicately probing for, and excavating around, suspected objects) aided by dogs trained to sniff out explosives.

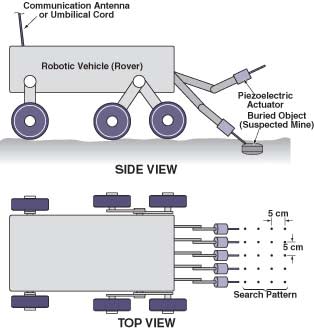

The instrumentation would be mounted on a robotic vehicle (see figure). The ultrasonic probes would include 30-cm-long prods that would be inserted gently in the ground at an angle of about 30°, as in manual demining. Piezoelectric actuators at the upper ends of each probe would vibrate the prod at a frequency of about 20 kHz. The probes would be placed 5 cm apart in a comb-like structure, and the vehicle would move in 5-cm steps. Thus, the search pattern would be a square array of points at intervals of 5 cm.
Although all the probes would be operated simultaneously, each would be pushed into the ground under separate control to search for hard objects. The insertion mechanism for each probe would be instrumented to measure the position, speed, and force of insertion. Contact between a probe tip and a buried mine, rock, or other hard object would be indicated by a sharp increase in the force and a corresponding sharp decrease in the speed of insertion. Once an object suspected of being a mine had been detected, probes could be inserted at various positions and angles to determine the size, shape, and location of the object. The force applied by the insertion mechanism would be limited to a level (preferably <10 N) below the force that could detonate a mine. The speed of insertion would also be limited to prevent accidental impact and detonation.
The prods would be in the form of hollow tubes, through which dust kicked up by the vibrations could be collected and analyzed. In particular, the vibrating tip of a prod could scratch the surface of a suspected object and the resulting dust could be analyzed by use of a miniature onboard mass spectrometer to determine whether the surface is a plastic, metal, wood, or other material of a suspected mine case. The effect of a suspected object on the acoustic impedance of the ultrasonic transducer in each probe would be examined to obtain additional information about a suspected object. Other sensors and actuators could also be used; for example, an eddy-current sensor could be used to detect a metallic surface, and localized heat could be applied to melt or decompose a small amount of surface material for analysis. Information acquired through multiple sensors could be processed by a sensor-fusion algorithm in an effort to confirm that a suspected object is a mine and, if possible, identify the type of mine. The algorithm would incorporate expert-system and other artificial-intelligence software.
This work was done by Yoseph Bar-Cohen of Caltech for NASA's Jet Propulsion Laboratory. For further information, access the Technical Support Package (TSP) free on-line at www.techbriefs.com under the Machinery/Automation category.
NPO-20399

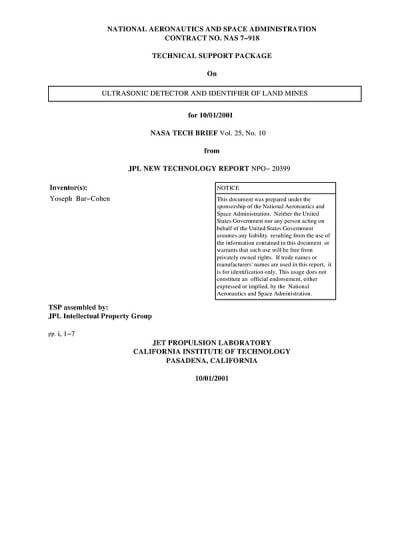

This Brief includes a Technical Support Package (TSP).
Ultrasonic Detector and Identifier of Land Mines
(reference NPO20399) is currently available for download from the TSP library.
Don't have an account?
Overview
The document outlines a technical report on an innovative system designed for the detection and identification of land mines using ultrasonic technology. Developed under the auspices of NASA and the Jet Propulsion Laboratory (JPL), the system employs an ultrasonic actuator/prod mechanism that mimics effective manual and canine search methods for mines.
The primary objective of this technology is to enhance the safety and efficiency of mine detection operations. The system is designed to operate at high speeds while minimizing risks to human operators. It utilizes a rover-mounted setup equipped with a linear array of ultrasonic prods that penetrate the ground at controlled speeds and forces. Each prod is pushed by a separate linear drive system, which includes motors, gears, and lead screws, allowing for precise control over position, speed, and force.
As the ultrasonic prod interacts with the ground, it monitors travel speed and pushing force to assess the clearance along its path. When the prod encounters a hard object, the speed decreases significantly, and the reaction force reaches a predetermined safe limit. At this point, a manipulator arm equipped with the ultrasonic prod is employed to determine the nature of the object—whether it is a rock, debris, or a mine. If the object is not definitively identified, it is assumed to be a mine, and further analysis is conducted.
The system also incorporates additional sensors, such as eddy-current sensors and heating elements, to enhance detection capabilities. For instance, the heating element can melt plastic surfaces or locally burn wood, aiding in the identification process. Dust collected from the interaction with the object is analyzed to determine its chemical composition, which can provide further insights into the nature of the detected object.
One of the key advantages of the ultrasonic detection system is its ability to perform repetitive probing tasks without fatigue, ensuring consistent and accurate results. The data collected during the probing process can be converted into grayscale images for analysis using image-processing algorithms, further improving the system's effectiveness in identifying land mines.
Overall, this document presents a comprehensive overview of a cutting-edge technology aimed at improving land mine detection, thereby contributing to safer environments in areas affected by land mines.
