Solar heating has been proposed as a means of deployment of structures of the type described in "Cold Hibernated Elastic Memory (CHEM) Expandable Structures," (NPO-20394), NASA Tech Briefs, Vol. 23, No. 2 (February 1999), page 56. A few examples of structures that would be amenable to the CHEM approach include expandable shelters, tanks, rafts, and thermally insulating boxes for storing food and drinks.
To recapitulate from the cited prior article: The CHEM concept is one of utilizing open-cell foams of shape-memory polymers (SMPs) to make lightweight, reliable, simple, and inexpensive structures that can be alternately (1) compressed and stowed compactly and later (2) expanded and rigidified for use. A CHEM structure of any shape is compacted to a small volume while in the rubbery state above the glass-transition temperature (Tg) of the SMP. After compaction, the structure is cooled below Tg where it is frozen in the glassy state of the SMP. The compacting force can then be released and the structure remains compact as long as the temperature is kept below Tg. Upon subsequent heating of the structure above Tg to the rubbery state of the SMP, the simultaneous elastic recovery of the foam and its shape-memory effect cause the structure to expand to its original size and shape. Once thus deployed, the structure can be rigidified by cooling below Tg to the glassy state. Once deployed and rigidified, the structure could be heated and recompacted. In principle, there should be no limit on the achievable number of compaction/deployment/rigidification cycles.
The attractiveness of the CHEM structure is the wide range of Tg resulting in a variety of potential space and terrestrial applications. Experiments have confirmed the feasibility of this innovative, self-deployable, and rigidizable structure.
The disadvantage of CHEM structures is that heat is needed for deployment. The proposed use of solar heat would eliminate the need to deplete other energy sources. According to the proposal, a CHEM structure would be wrapped in a blanket made of a material with a high ratio between solar absorptivity and infrared emissivity. Upon exposure to solar radiation, the structure inside the blanket would become heated because the blanket would absorb more heat than it would reradiate. Eventually, the temperature of the wrapped structure would increase beyond Tg, causing the structure to deploy itself by expanding to its full size and shape. After full deployment, the blanket would be removed, causing the structure to become cooled below Tg and thus rigidified. Thermal analysis confirmed a feasibility of this concept in the Mars environment. This concept will also work for applications on Earth and perhaps perform even better than on Mars.
This work was done by Witold Sokolowski, Art Chmielewski, and Henry Awaya of Caltech for NASA's Jet Propulsion Laboratory. For further information, access the Technical Support Package (TSP) free on-line at www.nasatech.com/tsp under the Materials category.
NPO-20961

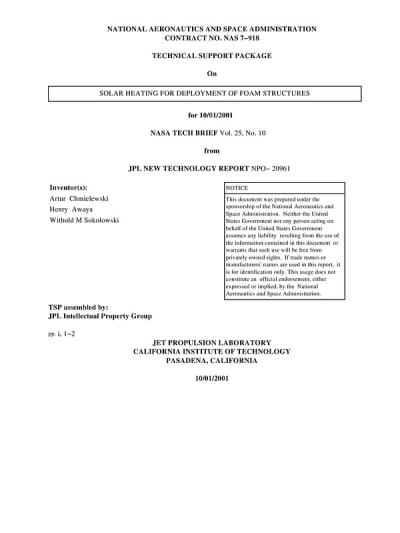

This Brief includes a Technical Support Package (TSP).
Solar Heating for Deployment of Foam Structures
(reference NPO-20961) is currently available for download from the TSP library.
Don't have an account?
Overview
The document discusses an innovative approach to deploying structures using solar heating, specifically focusing on Cold Hibernated Elastic Memory (CHEM) Expandable Structures. Developed by researchers at NASA's Jet Propulsion Laboratory (JPL), the CHEM concept utilizes open-cell foams made from shape-memory polymers (SMPs) to create lightweight, reliable, and cost-effective structures. These structures can be alternately compressed for compact storage and expanded for use, making them suitable for various applications, including expandable shelters, tanks, rafts, and thermally insulating boxes for food and drinks.
The deployment process involves several key steps. Initially, a CHEM structure is compacted while in a rubbery state above its glass-transition temperature (Tg). Once compacted, the structure is cooled below Tg, freezing it in a glassy state. The compacting force is then released, allowing the structure to remain compact as long as the temperature is maintained below Tg. When the structure is subsequently heated above Tg, it expands to its original size and shape due to the elastic recovery of the foam and the shape-memory effect. After deployment, the structure can be rigidified by cooling it back below Tg.
A significant advantage of this technology is the proposed use of solar heat for deployment. A CHEM structure can be wrapped in a specially designed blanket that has a high ratio of solar absorptivity to infrared emissivity. This blanket absorbs solar radiation, heating the structure inside and allowing it to reach the necessary temperature for deployment. Once fully deployed, the blanket can be removed, and the structure will cool and rigidify, making it stable for use. This method not only enhances the feasibility of deploying structures in space environments, such as Mars, but also has potential applications on Earth, where it could outperform traditional methods.
The document emphasizes the environmental benefits of using solar energy, as it reserves local energy sources for other purposes. The research was conducted by Witold Sokolowski, Art Chmielewski, and Henry Awaya, and the findings are part of ongoing efforts to develop advanced materials and technologies for space exploration and terrestrial applications. The work is documented in NASA Tech Briefs and is available for further exploration through the Technical Support Package online.
