Ethyl methyl carbonate (EMC) has been found to be a suitable cosolvent, along with three other carbonate solvents, for incorporation into electrolytes to enhance the low-temperature performance of rechargeable lithium-ion electrochemical cells. EMC is an asymmetric aliphatic carbonate, and, as noted in the first of the two immediately preceding articles, asymmetric carbonates confer certain benefits. In the research described in that article, the asymmetric carbonates were formed in situ, in reactions catalyzed by lithium alkoxide additives. In contrast, the present finding that EMC is a suitable cosolvent was made by following a different approach; namely, formulating the electrolyte solvents to include an asymmetric aliphatic carbonate — EMC — in the first place.
The table shows the compositions of electrolytes used in experiments on the effects of using EMC as a cosolvent. These compositions were chosen on the basis of the expectation of the beneficial effects of adding a low-viscosity, low-melting-temperature solvent (in this case, EMC) to carbonate solvent mixtures that had previously been observed to have desirable stabilizing and passivating qualities. Another purpose for some of the choices was to minimize the proportion of EC and maximize the proportion of low-viscosity, low-melting cosolvents, provided that doing so would not impair the dissolution of the LiPF6. As in the research described in the two immediately preceding articles, the basis for comparison in these experiments was established by a previously discovered optimal electrolyte formulation; namely, a 1.0 M solution of LiPF6 in a solvent comprising equal volume parts of ethylene carbonate (EC), dimethyl carbonate (DMC), and diethyl carbonate (DEC).
The experiments included charge/discharge tests of lithium/graphite half cells containing the various electrolytes, and ac-impedance and dc-micropolarization tests to characterize the films [solid/electrolyte interfaces (SEIs)] that formed on the graphite electrodes. The results of the experiments were interpreted in terms of stability of SEIs, kinetics of intercalation of lithium into graphite electrodes, and electrical conductivities of electrolytes. In the formulations studied, the addition of EMC exerted no observable adverse effects on the SEIs or on the kinetics; instead, the addition of EMC was found to reduce low-temperature film resistances and to enhance the kinetics and the discharge characteristics. The best low-temperature electrical performance was observed in the case of the electrolyte with the highest EMC content; this is consistent with the lower (relative to the other carbonate solvents) viscosity and freezing temperature of EMC.
This work was done by Marshall Smart, Ratnakumar Bugga, and Subbarao Surampudi of Caltech for NASA's Jet Propulsion Laboratory. For further information, access the Technical Support Package (TSP) free on-line at www.nasatech.com/tsp under the Materials category.
NPO-20605

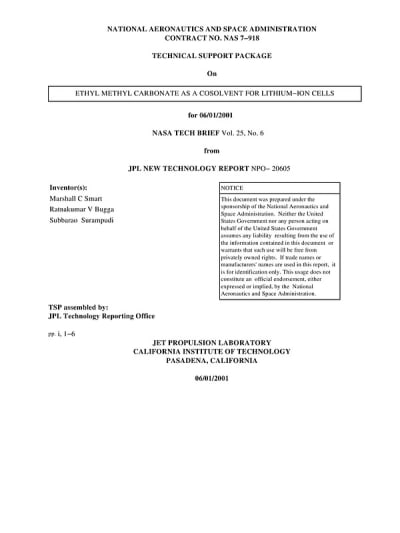

This Brief includes a Technical Support Package (TSP).
Ethyl Methyl Carbonate as a Cosolvent for Lithium-Ion Cells
(reference NPO-20605) is currently available for download from the TSP library.
Don't have an account?
Overview
The document discusses the use of Ethyl Methyl Carbonate (EMC) as a cosolvent in lithium-ion cells, highlighting its beneficial effects on the performance of these batteries, particularly at low temperatures. Conducted by researchers at NASA's Jet Propulsion Laboratory, the study focuses on various electrolyte formulations that incorporate EMC alongside other solvents like Ethylene Carbonate (EC), Diethyl Carbonate (DEC), and Dimethyl Carbonate (DMC).
Key findings indicate that the addition of EMC improves the charge/discharge characteristics of lithium-graphite half-cells. The experiments included charge/discharge tests and ac-impedance measurements to assess the stability of solid/electrolyte interfaces (SEIs) formed on graphite electrodes. The results showed that incorporating EMC did not adversely affect the SEIs or the kinetics of lithium intercalation into graphite. Instead, it reduced low-temperature film resistances and enhanced discharge characteristics, making it a promising candidate for improving battery performance in colder conditions.
The document outlines various electrolyte compositions tested, with concentrations of lithium hexafluorophosphate (LiPF6) ranging from 0.75 M to 1.0 M, and varying proportions of the carbonate solvents. The formulations with higher EMC content demonstrated superior low-temperature performance, attributed to EMC's low viscosity and low freezing point. The study suggests that optimizing the concentration of LiPF6 could further enhance low-temperature performance without significantly increasing viscosity.
Additionally, the document emphasizes that electrolyte properties, particularly conductivity, play a crucial role in the overall performance of lithium-ion cells at low temperatures. It notes that sufficient conductivity is essential for effective operation, and the ideal electrolyte should possess a combination of high dielectric constant, low viscosity, and appropriate liquid ranges.
Overall, the research underscores the potential of EMC as a valuable cosolvent in lithium-ion battery formulations, particularly for applications requiring reliable performance in low-temperature environments. The findings contribute to the ongoing development of advanced battery technologies, with implications for various applications, including aerospace and electric vehicles. The work was conducted under NASA's sponsorship, reflecting the agency's commitment to advancing energy storage solutions.
