A report proposes brush-wheel mechanisms for acquiring samples of soils from remote planets. In simplest terms, such a mechanism would contain brush wheels that would be counter-rotated at relatively high speed. The mechanism would be lowered to the ground from a spacecraft or other exploratory vehicle. Upon contact with the ground, the counterrotating brush wheels would kick soil up into a collection chamber. Thus, in form and function, the mechanism would partly resemble traditional street and carpet sweepers. The main advantage of using of brush wheels (in contradistinction to cutting wheels or other, more complex mechanisms) is that upon encountering soil harder than expected, the brushes could simply deflect and the motor(s) could continue to turn. That is, sufficiently flexible brushes would afford resistance to jamming and to overloading of the motors used to rotate the brushes, and so the motors could be made correspondingly lighter and less power hungry. Of course, one could select the brush stiffnesses and motor torques and speeds for greatest effectiveness in sampling soil of a specific anticipated degree of hardness.
This work was done by Tommaso Rivellini of Caltech for NASA's Jet Propulsion Laboratory. For further information, access the Technical Support Package (TSP) free on-line at www.techbriefs.com/tsp under the Mechanics category. NPO-30665.
This Brief includes a Technical Support Package (TSP).
Brush-Wheel Samplers for Planetary Exploration
(reference NPO-30665) is currently available for download from the TSP library.
Don't have an account?
Overview

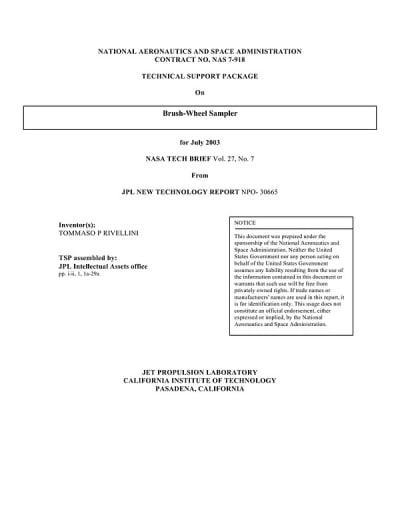

The document is a technical support package prepared by Tom Rivellini and Fabian Nicais for NASA's Jet Propulsion Laboratory (JPL), detailing a concept for a brush-wheel sampler designed for the Gulliver Deimos Sample Return Mars Scout Proposal. The primary focus of the document is on the innovative design and functionality of the brush-wheel sampler, which aims to efficiently collect soil samples from planetary bodies, particularly Mars.
