Tridirectional diffraction gratings have been proposed to provide optical coupling to quantum-well infrared photodetectors (QWIPs) in focal-plane arrays. The tridirectional gratings would be improved versions of the bidirectional (rectangular-pattern) gratings described in "Cross-Grating Coupling for Focal-Plane Arrays of QWIPS" (NPO-19657), NASA Tech Briefs, Vol. 22, No. 1 (January 1998), page 6a. The tridirectional gratings would comprise metal patches or holes arranged in a pattern of closely packed regular hexagonal cells (see figure), with dimensions chosen to optimize diffraction patterns to maximize coupling within narrow spectral bands of interest.
A brief review of the problem of coupling light into a QWIP is prerequisite to an explanation of the improvement expected to accrue from the use of the tridirectional gratings. The QWIP light-coupling problem results from three considerations: (1) the direction through the thicknesses of the quantum wells is perpendicular to the focal plane; (2) quantum selection rules allow the detection of only that part of the incident light that is electrically polarized along the direction through the thicknesses of the quantum wells and thus perpendicular to the focal plane; and (3) the light to be detected is incident along directions approximately perpendicular to the focal plane, and thus only a small fraction of it is electrically polarized along the thicknesses of the quantum wells.
By diffracting light so that at least some of it propagates within the quantum wells at angles other than perpendicular to the focal plane, one changes the plane of polarization so that the through-the-thickness component of polarization is increased. Thus, coupling is increased. The problem in designing a grating (whether linear, bidirectional, or tridirectional) for coupling is to choose the dimensions of the grating to maximize the first-order diffraction of optical power to suitable angles away from the perpendicular. Because a tridirectional grating would exhibit the same periodicity along three directions in the focal plane (instead of only two directions for a corresponding rectangular-pattern cross grating or one direction for a corresponding linear grating), the tridirectional grating would diffract more light to higher angles and thus give rise to increased coupling.
One might be tempted to extend the tridirectional-grating concept to gratings with octagonal or even more complex unit cells in the hope of exploiting periodicity along a greater number of directions. However, this approach would be unlikely to yield any improvement because of a fundamental geometric limitation: Any packing of regular octagons or regular higher polygons in a regular pattern would necessarily create empty interstitial areas.
This work was done by Sumith V. Bandara, Sarath Gunapala, Daniel Wilson, and John K. Liu of Caltech for NASA's Jet Propulsion Laboratory.
In accordance with Public Law 96-517, the contractor has elected to retain title to this invention. Inquiries concerning rights for its commercial use should be addressed to
Technology Reporting Office
JPL
Mail Stop 122-116
4800 Oak Grove Drive
Pasadena, CA 91109
(818) 354-2240
Refer to NPO-20703

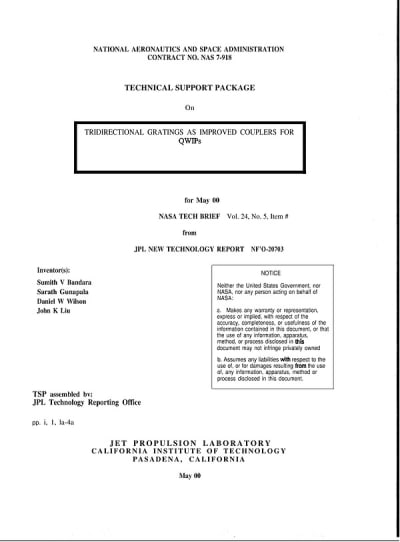

This Brief includes a Technical Support Package (TSP).
Tridirectional Gratings as Improved Couplers for QWIP's
(reference NPO20703) is currently available for download from the TSP library.
Don't have an account?
Overview
The document discusses advancements in light coupling structures for Quantum Well Infrared Photodetectors (QWIPs), specifically focusing on the development of tridirectional gratings. Traditional QWIPs face challenges in efficiently coupling light due to quantum mechanical selection rules that limit their response to normally incident light. This results in poor absorption when the incoming light lacks polarization along the growth direction of the quantum wells.
To address this issue, the authors propose a novel grating structure that features periodicity in three different directions, as opposed to the existing two-dimensional cross gratings or linear gratings that only have periodicity in one or two directions. This tridirectional design allows for enhanced diffraction of light, enabling more effective coupling by directing light at higher angles into the quantum wells. The increased angle of incidence improves the polarization alignment with the thickness of the quantum wells, thereby enhancing the absorption of incident light.
The document includes technical illustrations, such as a three-dimensional view of the hexagonal grating and cross-sectional diagrams of the QWIP structure with the grating and metal layers. The proposed grating can be fabricated using hexagonal grooves or slabs within the top cap layer of the QWIP structure, followed by the application of metal layers for ohmic contacts and high reflectivity.
The authors emphasize that the tridirectional grating structure is expected to significantly improve light coupling efficiency compared to existing technologies. This advancement is crucial for the development of more effective imaging systems using QWIP focal plane arrays (FPAs), which are essential for various applications in infrared detection.
In summary, the document presents a comprehensive overview of the challenges faced by QWIPs in light coupling and introduces a promising solution through the design of tridirectional gratings. This innovation aims to enhance the performance of QWIPs, making them more effective for infrared detection and imaging applications. The work is a collaborative effort from researchers at the Jet Propulsion Laboratory and is part of ongoing efforts to improve optical technologies in space and other fields.
