Researchers at the NASA Johnson Space Center (JSC), in collaboration with General Motors (GM), have designed and developed Robo-Glove, a wearable human grasp assist device, to help reduce the grasping force needed by an individual to operate tools for an extended time or when performing tasks having repetitive mo tion. Robo-Glove has the potential to help workers, such as construction workers, hazardous material workers, or assembly line operators, whose job requires continuous grasping and ungrasping motion. The Robo-Glove also has potential applications in prosthetic devices, rehabilitation aids, and helping people with impaired or limited arm and hand muscle strength.

The lightweight robotic glove has actuators, pressure sensors, and synthetic tendons embedded in one self-contained device.

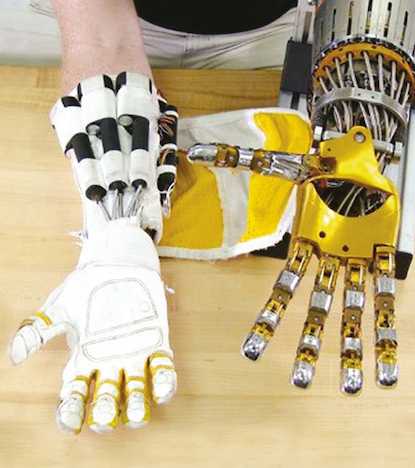

Originally develop ed by NASA and GM, the Robo-Glove technology was a spin off of the Robonaut 2 (R2), the first humanoid robot in space. This wearable device allows the user to tightly grip tools and other items for longer periods of time without experiencing muscle discomfort or strain. An astronaut working in a pressurized suit outside the space station or an assembly operator in a factory might need to use 15 to 20 lbs. of force to hold a tool during an operation. Use of the Robo-Glove, however, would potentially reduce the required force to only 5 to 10 lbs.

The Robo-Glove is a self-contained unit, essentially a robot on your hand, with actuators embedded into the glove that provide grasping support to human fingers. The pressure sensors, similar to the sensors that give R2 its sense of touch, are incorporated into the fingertips of the glove to detect when the user is grasping an object. When the user grasps the object, the synthetic tendons automatically retract, pulling the fingers into a gripping position and holding them there until the sensor is released by releasing the object. The current prototype weighs around two pounds, including control electronics and a small display for programming and diagnostics. A lithiumion battery, such as one for power tools, is used to power the system and is worn separately on the belt.

This technology can be used in construction, hazardous material handling, medical applications, automotive repair, manufacturing, repetitive motion work, and oil and gas exploration.

NASA is actively seeking licensees to commercialize this technology. Please contact Michelle P. Lewis at This email address is being protected from spambots. You need JavaScript enabled to view it. to initiate licensing discussions. Follow this link for more information: http://technology.nasa.gov/patent/TB2016/MSC-TOPS-37.
