A proposal has been made to develop devices that would generate spin-polarized electron currents characterized by polarization ratios having magnitudes in excess of 1. Heretofore, such devices (denoted, variously, as spin injectors, spin polarizers, and spin filters) have typically offered polarization ratios having magnitudes in the approximate range of 0.01 to 0.1. The proposed devices could be useful as efficient sources of spin-polarized electron currents for research on spintronics and development of practical spintronic devices.
The polarization ratio in question — denoted the current spin polarization — is a standard measure of efficiency of a spin-polarizing device. It is defined in terms of current densities along a given coordinate axis, by means of the following equation:
PJ> = (J↑ – J↓)/(J↑ + J↓),
where J↑ is current density of electrons in the “up” spin state and J↓ is the current density of electrons in the “down” spin state. If J↑ and J↓ can be made to have opposite signs — in other words, if electrons in opposite spin states can be made to move in opposite directions — then, as desired, it is possible to obtain |PJ|>1. By making |PJ|>1, one would make it possible to obtain a net spin flux with little net electric current.

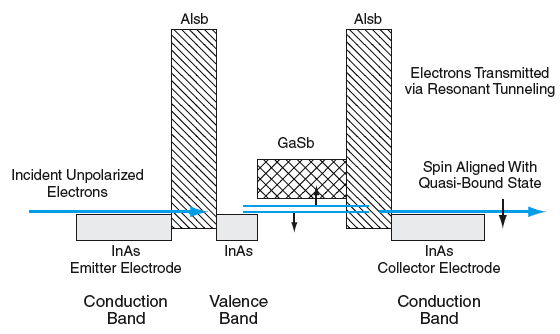

One possible structure of a device according to the present proposal would be similar to the a-RITD structure described previously: The device would comprise an asymmetric composite InAs-GaSb well, sandwiched between AlSb barriers and degenerately-n-doped InAs emitter and collector electrodes (see figure). Unpolarized electrons from the conduction band of the InAs emitter electrode would tunnel through one AlSb barrier and travel through an asymmetric InAs-GaSb quantum well, where Rashba spin splitting would occur; they would then tunnel through the other AlSb barrier into the conduction band of the InAs collector electrode. The device would be operated in an intraband-tunneling regime, in which no bias would be applied through the thickness of the stack of layers. A lateral electric (an electric field parallel to the planes of the layers) would be applied to emitter layer. With appropriately chosen thicknesses of layers and an appropriate value of the applied lateral electric field, it should be possible to achieve |PJ|>1.
This work was done by David Z. Ting of Caltech for NASA’s Jet Propulsion Laboratory. NPO-30670
