Color interference filters for individual pixels in solid-state electronic image and display devices would be made of thin metal and dielectric films, according to a proposal. The proposed filters would overcome the primary disadvantage (high cost) of dye color filters like those used in liquid-crystal display devices, digital cameras, and camcorders. The proposed filters would also offer advantages of cost and functionality over color interference filters made of alternating dielectric layers with different indices of refraction.
Figure 1. A Broad-Band-Pass Interference Filter to pass one of the primary colors could be made of three thin layers of silver interspersed with two of magnesium fluoride.
The all-dielectric filters are expensive because of the need for large numbers of layers to obtain adequate discrimination among red, green, and blue (RGB). The proposed filters would provide adequate color discrimination with acceptably broad-band response (pass wavelength bands about 100 nm wide). The proposed filters would be relatively inexpensive because they would contain fewer layers -- typically no more than five layers, and only two layers need to have different thickness for RGB colors, which means it only needs to be masked 2 ¥ (3 - 1) = 4, as contrasted with more than 10 layers for an all-dielectric filter, and needs to be masked 10 ¥ (3 - 1) = 20.
Figure 1 shows aspects of a proposed five-layer metal/dielectric filter containing three layers of silver alternating with two layers of magnesium fluoride. The table in the figure shows the film thicknesses needed to make the filter transmit each of the three primary colors. The corresponding silver layers for all three color filters could be of the same thicknesses; only the magnesium fluoride layers would differ in thickness among the three colors. The total number of distinct layer thicknesses is only five, three for silver and two for magnesium fluoride.

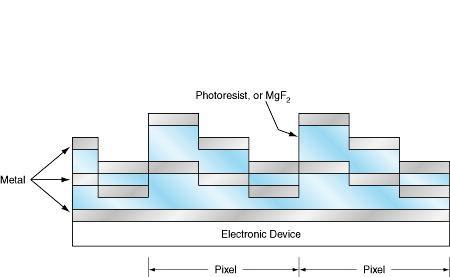

Figure 2. Filters for All Three Primary Colors could be fabricated within each pixel of a display or image device, by use of established deposition and photoresist patterning techniques.
Because of the small number of thicknesses, patterning and other aspects of the fabrication of a device with three primary-color filters in each pixel (see Figure 2) would be relatively easy. The metal patterns could be formed in the presence of photoresist masks temporarily substituting for the magnesium fluoride films. The optical thickness of each photoresist mask would be made equal to that of the magnesium fluoride film to be subsequently deposited in its place. Because it is relatively easy to control the thickness of a photoresist mask, fabrication should be relatively simple and inexpensive.
This work was done by Yu Wang of Caltech for NASA's Jet Propulsion Laboratory.
In accordance with Public Law 96-517, the contractor has elected to retain title to this invention. Inquiries concerning rights for its commercial use should be addressed to
Technology Reporting Office
JPL
Mail Stop 122-116
4800 Oak Grove Drive
Pasadena, CA 91109
(818) 354-2240
Refer to NPO-20217

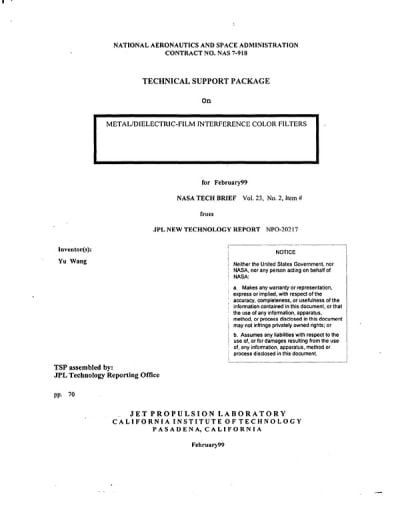

This Brief includes a Technical Support Package (TSP).
Metal / dielectric-film interference color filters
(reference NPO20217) is currently available for download from the TSP library.
Don't have an account?
Overview
The document presents a technical report on metal/dielectric-film interference color filters developed by Yu Wang at NASA's Jet Propulsion Laboratory (JPL). It outlines a novel approach to creating color filters that are both cost-effective and efficient for use in solid-state electronic image and display devices. The report emphasizes the potential of these filters to enhance color discrimination while reducing manufacturing costs compared to traditional all-dielectric filters.
Key highlights include the use of established deposition and photoresist patterning techniques to fabricate filters for the three primary colors within each pixel of a display. The document discusses the structural design of thin metal film color filters, detailing a five-layer system that can be adjusted to achieve desired optical properties. The transmission spectrum of these filters is analyzed, showing how variations in the thickness of the MgF2 layer can shift the transmission peaks across the visible spectrum. Specifically, as the thickness of MgF2 increases from 110 nm to 185 nm, the transmission peak shifts from 420 nm to 640 nm, indicating the tunability of the filter's color response.
The report also includes graphical representations of the transmission spectra, illustrating how changes in air gap thickness affect the transmission peaks. For instance, increasing the air gap from 150 nm to 300 nm results in a shift of the transmission peak from 410 nm to 700 nm, demonstrating the filter's ability to manipulate light effectively.
Overall, the document serves as a technical support package that outlines the advancements in interference color filter technology, highlighting its implications for future applications in electronic displays. It underscores the importance of this research in the context of NASA's ongoing efforts to innovate in the field of imaging and display technologies. The report concludes with a disclaimer regarding the accuracy and completeness of the information, emphasizing that neither NASA nor any associated parties assume liability for the use of the disclosed methods or processes.
In summary, this report provides a comprehensive overview of the development and potential applications of metal/dielectric-film interference color filters, showcasing a significant step forward in display technology.
